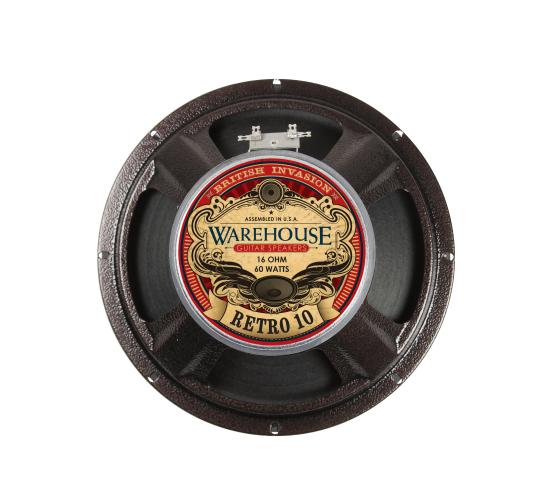

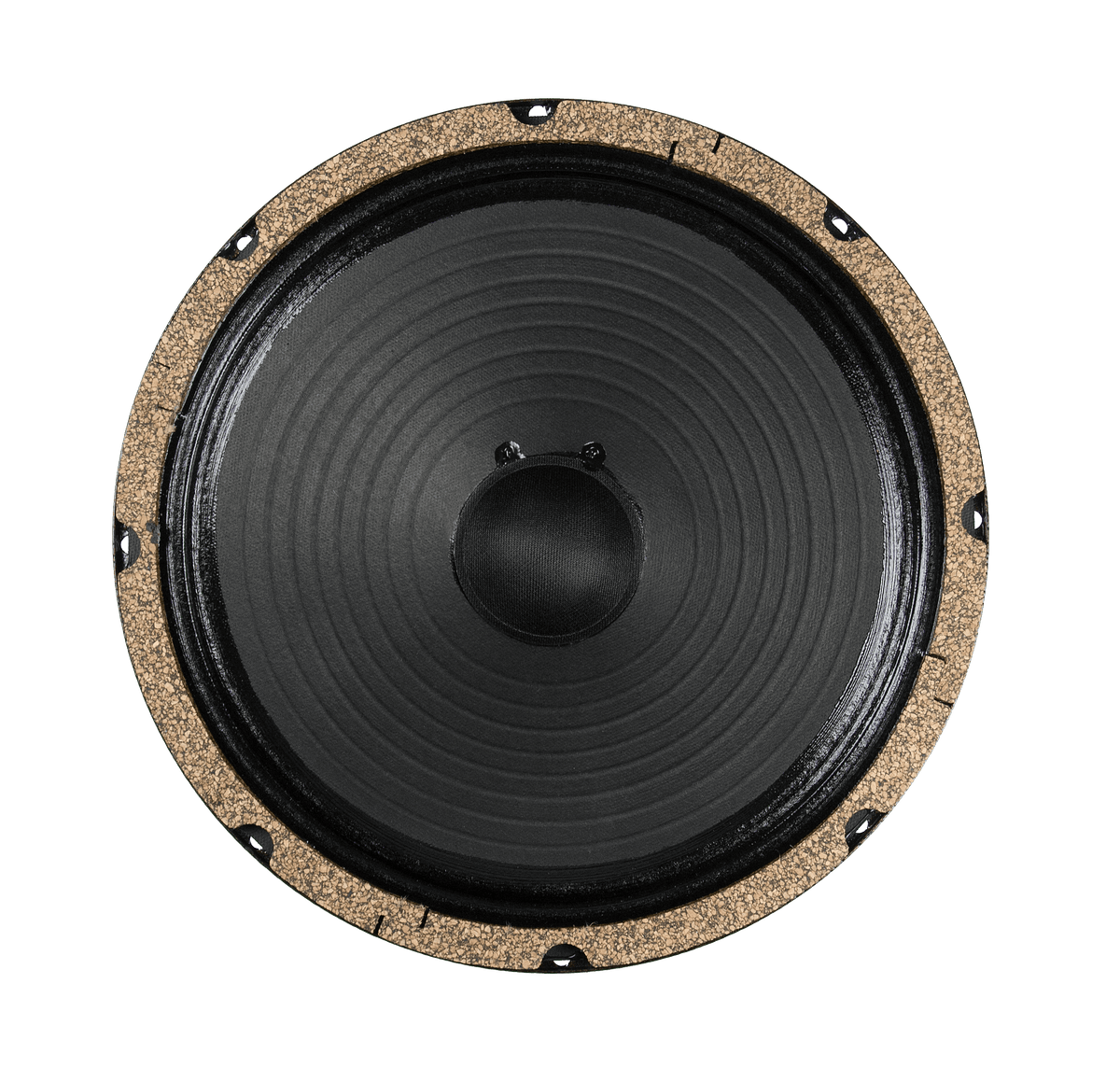

10" Retro 10 - 60 watts
10" Retro 10 - 60 watts
$109.99$149.99
| Current Lead Time: 1 week |
With the Retro 10, we set out to build something with all the qualities we enjoy about our Retro 30 in a 10” speaker. It’s got a tight bottom, an articulate top end, and a nice low-midrange growl. It can be thought of as a distant cousin of the Green Beret 10, but with more low end, slightly more top end, and a shift in midrange characteristics.
Unit weight: 7.5 pounds
MOUNTING INFORMATION
- Diameter 10 1/8”
- Overall depth 4 1/4”
- Cut-out diameter 9”
- Mounting slot dimensions .2”x.3"
- Number of mounting slots: 8
- Mounting slot PCD 9 3/4”
Retro_10_clean_Nicky_Moroch.mp3
Retro_10_drive_Nicky_Moroch.mp3
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs):
115.58 Hz
DC Resistance (Re):
6.27 Ohm
Coil Inductance (Le):
0.17 mH
Mechanical Q (Qms):
6.72
Electromagnetic Q (Qes):
0.66
Total Q (Qts):
0.6
Compliance Equiv. Vol. (Vas):
16.26 cu ft
Mech. Compliance of Susp. (Cms):
0.11 mm/N
BL Product (BL):
10.99 T-M
Diaphragm Mass Inc. Airload (Mms):
17.39 grams
Surface Area of Cone (Sd):
324.29 Surface Area of Cone (Sd):
Sound Pressure Level (spl):
100.62 db
Customer Reviews
Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Perfect for my Dr Z Carmen Ghia 35th Anniversary.
I prefer 10" guitar speakers and have used the Celestion V-10/60W for years. This Retro speaker sounds awesome in this amp, made in USA, comp priced, and looks cool like that little veteran 10 that I replaced. Thanks to all!
D
Sweet and loud!
This speaker transformed my little Vox Mini Superbeetle. It was fine before, but lacking in clean volume for playing with a band. The Retro 10 4-ohm allows the amp to put out 50 watts, *and* it is also more efficient than the original 8-ohm Celestion (which the amp ran at 25 watts). The result is a *way* louder amp with plenty of headroom and a more solid bass. The overall tone is nicely similar to the original speaker, keeping the Vox-y vibe.
Thanks to Trevor for suggesting this speaker for my little Vox.
w
Seventh Heaven ![User picture]()
64 Custom Princeton Reverb. Replaced original Jenson with Celestion G10. Replaced with vintage Fender Gold Label. Replaced with vintage Tone Tubby 40/40 Hempcone Green. Replaced with vintage JBL K110. Replaced with WGS G10C. Replaced with WGS Retro 10 and now after years of searching the tone is home. Amp on 7 - Vinetto Tele with Lollar Vintage T's on 7 = clean rhythm - simply roll volume to 10 and the Princeton/WGS gets up it's hind legs and HOWLS! Thanks to Jason Soileau (tech) and Trevor (WGS).
c
Awesome
Love it.
N
Review of Nate on 10" Retro 10 - 60 watts
I just bought one of these and put it in my Champ II and wow. What a great speaker for this amp! Plus at 100 decibels sensitivity it should be able to hang in there with 12" speakers. I'm excited to take this little Champ to my next gig.
