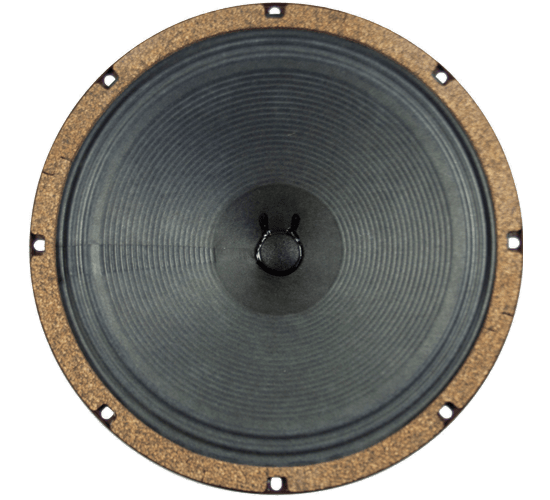

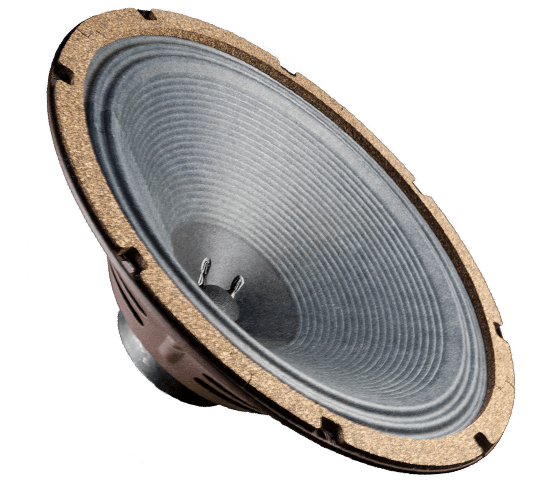

12" G12Q - 20 watts

12" G12Q - 20 watts

Impedance

Building on the popularity of our G12C, we developed the G12Q for those times when you want the speaker to add some natural, vintage breakup but maintain clarity. With a 20 oz magnet and a 1" voice-coil, the G12Q definitely has a vintage American flavor. We highly recommend it with 5E3 style circuits.

MOUNTING INFORMATION

  • Diameter 12 3/16”
  • Overall depth 5 1/16”
  • Cut-out diameter 10 7/8”
  • Mounting slot dimensions .25”x.35"
  • Number of mounting slots: 8
  • Mounting slot PCD 11 3/4”

G12Q_clean_Nicky_Moroch.mp3

G12Q_drive_Nicky_Moroch.mp3

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs):

91.91 Hz

DC Resistance (Re):

7.7 Ohm

Coil Inductance (Le):

0.26 mH

Mechanical Q (Qms):

20.75

Electromagnetic Q (Qes):

2.64

Total Q (Qts):

2.35

Compliance Equiv. Vol. (Vas):

22.17 cu ft

Mech. Compliance of Susp. (Cms):

0.12 mm/N

BL Product (BL):

6.57 T-M

Diaphragm Mass Inc. Airload (Mms):

25.71 grams

Surface Area of Cone (Sd):

366.1 Surface Area of Cone (Sd):

Sound Pressure Level (spl):

95.92 db

Customer Reviews

Based on 19 reviews
79%
(15)
21%
(4)
0%
(0)
0%
(0)
0%
(0)
M
Marcin Apostol
Exactly what I was looking for

As the sales description says, a speaker that maintains clarity while having that great sounding speaker breakup. This was what I was looking for and got. Thank you WGS!

G
George T Miller
Good Alnico alternative for 5E3

Keeps the character of the 5E3 while taming some bass.
Gives the typical alnico choices a good run for the money !
An amazing ceramic …

m
mmeacham0007
Awesome speaker

Breaks up quite nice!

J
Jim Pefferman
replacement speaker

I have a Crate 1R from 1978 that just never sounded quite right to me. Your G12Q took the sharpness away. I sounds very good now clean, and with overdrive. With a good spring reverb on board, I didn't want to waste an amplifier.
This changed the game.

J
Jay Torian
Nice speaker

Better than expected for price paid. Good value. Used 4ohm speaker in extension cabinet.

Artists that use this speaker:
