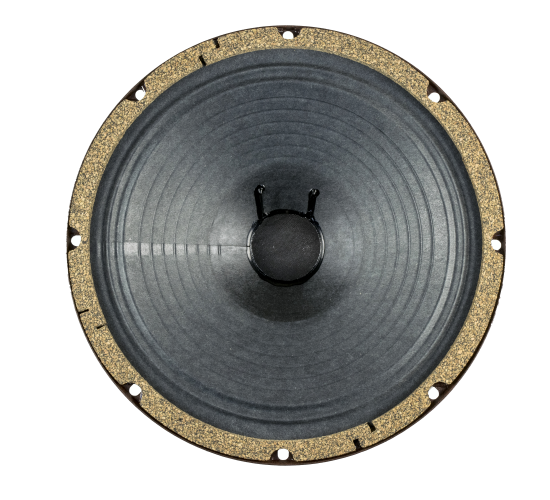

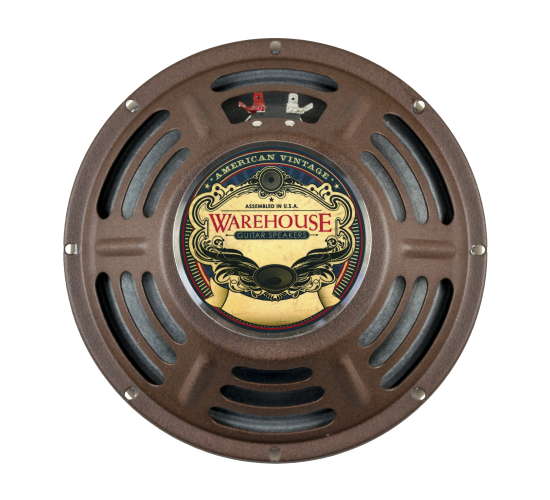

10” G10A - 75 watts

10” G10A - 75 watts

Impedance

This item is built to order.
Please allow 7-10 business days for your order to ship.

The G10A is one of the "must-have" speakers from our American voiced line. It has a sweet AlNiCo top-end chime, smooth creamy mids that break up just right, and a substantial low end. With a seamed cone, 1.5" voice coil, and a 40oz. AlNiCo magnet, this speaker can handle whatever you throw at it.

Unit Weight: 7.5 pounds

MOUNTING INFORMATION

  • Diameter 10 3/16"”
  • Overall depth 5 1/4”
  • Cut-out diameter 9”
  • Mounting slot dimensions 1/4”
  • Number of mounting slots: 8
  • Mounting slot PCD 9 3/4”

G10A_clean_Nicky_Moroch.mp3

G10A_drive_Nicky_Moroch.mp3

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs):

82.0 Hz

DC Resistance (Re):

5.2 Ohm

Coil Inductance (Le):

0.32 mH

Mechanical Q (Qms):

5.93

Electromagnetic Q (Qes):

0.76

Total Q (Qts):

0.67

Compliance Equiv. Vol. (Vas):

1.46 cu ft

Mech. Compliance of Susp. (Cms):

0.22 mm/N

BL Product (BL):

7.83 T-M

Diaphragm Mass Inc. Airload (Mms):

17.4 grams

Surface Area of Cone (Sd):

366.0 Surface Area of Cone (Sd):

Sound Pressure Level (spl):

97.0 db

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
w
westin
Great sound

I slapped it into a 68 RI Princeton, sounds amazing other than the bass can be overwhelming and bassy on lower notes.

B
Best 10" Ever
Review of Best 10" Ever on 10” G10A - 75 watts

So I make custom amps and was making a Combo for Ed Robertson (lead guitarist and vocals Barenaked Ladies) son Lyle who is heading to Berklee in the fall. I have at least 12 different 10"s here and a couple of friends of mine and I sat around and listened to all of these with the amp I design. This was the most open and dynamic driver of all the others we tried. Great speaker will be using it more in the future.

Gordon Rankin-Wavelength Audio, ltd.

Artists that use this speaker:
