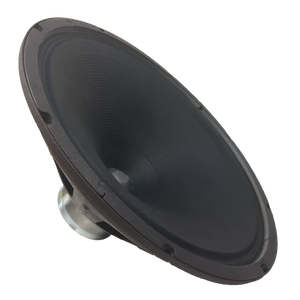

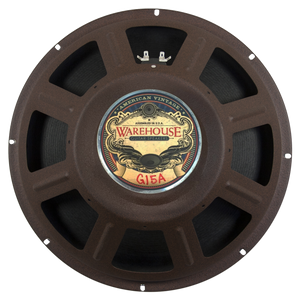

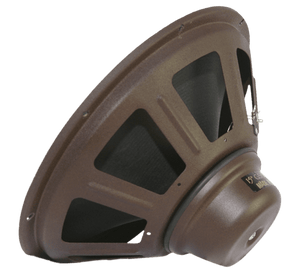

15" G15A alnico - 75 watts
15" G15A alnico - 75 watts
$279.99$389.99
| DISCONTINUED |
| WGS no longer manufactures this product. We apologize to all those who missed their chance at acquiring a G15A, and for any inconvenience this may cause. However, we do hope current owners will continue to enjoy their product. Thank you! |
We have created a truly awesome 15" alnico guitar speaker! Now you can play a 15" with quick, articulate response, an aggressive mid-range, & fat low end.
g15a_-_sc_-_clean_-_rv50.mp3
g15a_-_sc_-_dirty_-_rv50_0.mp3
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs):
98.53 Hz
DC Resistance (Re):
5.15 Ohm
Coil Inductance (Le):
0.16 mH
Mechanical Q (Qms):
9.1
Electromagnetic Q (Qes):
1.87
Total Q (Qts):
1.55
Compliance Equiv. Vol. (Vas):
57.4 cu ft
Mech. Compliance of Susp. (Cms):
0.06 mm/N
BL Product (BL):
8.98 T-M
Diaphragm Mass Inc. Airload (Mms):
47.28 grams
Surface Area of Cone (Sd):
856.34 Surface Area of Cone (Sd):
Sound Pressure Level (spl):
100.46 db
