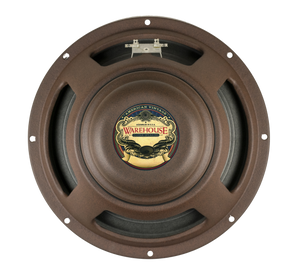

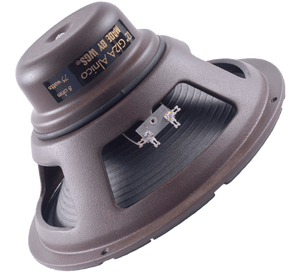

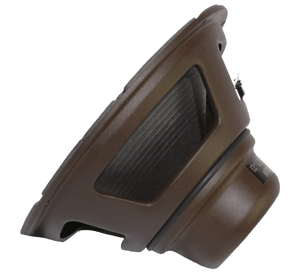

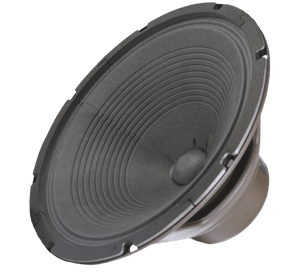

12" G12A alnico - 75 watts

12" G12A alnico - 75 watts

Impedance

This item is built to order.
Please allow 7-10 business days for your order to ship.

Take our popular G12C and pair it with a 40oz AlNiCo magnet, and you have the legendary G12A. With a tight bass response and the chime and musical compression of its AlNiCo magnet, you have a speaker that will complement any rig.

Unit Weight: 9.5 pounds

MOUNTING INFORMATION

  • Diameter 12 1/4"”
  • Overall depth 6”
  • Cut-out diameter 11”
  • Mounting slot dimensions 1/4”
  • Number of mounting slots: 8
  • Mounting slot PCD 11 3/4”

G12A_clean_Nicky_Moroch.mp3

G12A_drive_Nicky_Moroch.mp3

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs):

125.0 Hz

DC Resistance (Re):

6.4 Ohm

Coil Inductance (Le):

0.33 mH

Mechanical Q (Qms):

11.14

Electromagnetic Q (Qes):

1.5

Total Q (Qts):

1.32

Compliance Equiv. Vol. (Vas):

685.0 cu ft

Mech. Compliance of Susp. (Cms):

0.05 mm/N

BL Product (BL):

10.3 T-M

Diaphragm Mass Inc. Airload (Mms):

31.62 grams

Surface Area of Cone (Sd):

51.94 Surface Area of Cone (Sd):

Sound Pressure Level (spl):

96.0 db

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
f
frankcase123

thanks

O
O0wl
Review of O0wl on 12" G12A alnico - 75 watts

An excellent sounding, very well balanced American flavored ANICO speaker.

Artists that use this speaker:


Austin Jenkins

Austin Jenkins

Austin is the lead guitarist of the Leon Bridges band, and former lead guitarist of legendary indie rock band, White Denim. On tour with Leon Bridges, he uses a vintage Tweed Deluxe through a WGS G12A AlNiCo.
