12" Black & Blue alnico - 15 Watts

12" Black & Blue alnico - 15 Watts

Impedance

This item is built to order.
Please allow 7-10 business days for your order to ship.

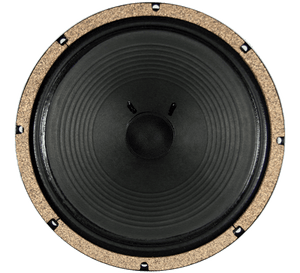

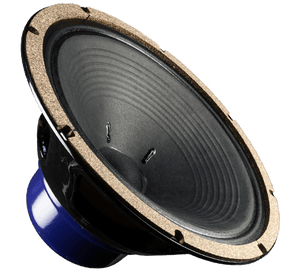

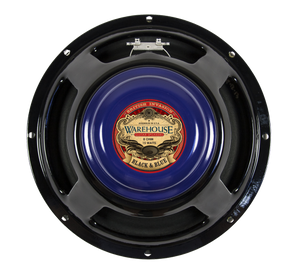

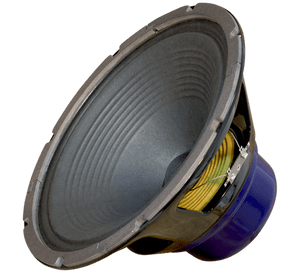

The 12" Black & Blue™ alnico speaker sets a new standard for alnico performance. Clean and clear upper mids and highs, warm lower mids, and bass that will be felt by everyone in the room. This speaker is the perfect upgrade for your VOX™ AC30 or AC15 amp.

Drop in replacement for Celestion™ Blue™ alnico speaker.

PRODUCT SPECIFICATIONS

  • Power Rating 15 watts RMS
  • 40 oz Alnico magnet
  • Unit Weight:  9.5 pounds

MOUNTING INFORMATION

  • Diameter 12 3/16"
  • Overall depth 6 3/8"
  • Cut-out diameter 11"
  • Mounting slot dimensions 1/4"
  • Number of mounting slots: 8
  • Mounting slot PCD 11 3/4"

Black_and_Blue_clean_Nicky_Moroch.mp3

Black_and_Blue_drive_Nicky_Moroch.mp3

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs):

106.73 Hz

DC Resistance (Re):

7.24 Ohm

Coil Inductance (Le):

0.32 mH

Mechanical Q (Qms):

15.89

Electromagnetic Q (Qes):

1.17

Total Q (Qts):

1.09

Compliance Equiv. Vol. (Vas):

14.29 cu ft

Mech. Compliance of Susp. (Cms):

0.08 mm/N

BL Product (BL):

11.06 T-M

Diaphragm Mass Inc. Airload (Mms):

29.57 grams

Surface Area of Cone (Sd):

366.1 Surface Area of Cone (Sd):

Sound Pressure Level (spl):

99.49 db
