10” G10A - 75 watts
10” G10A - 75 watts
$199.99$299.99
This item is built to order.
Please allow 7-10 business days for your order to ship.

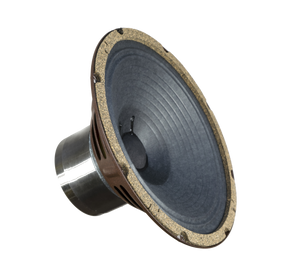

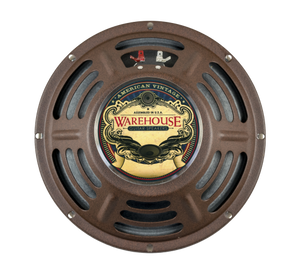

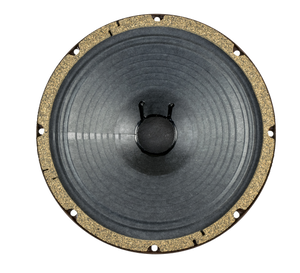

The G10A is one of the "must-have" speakers from our American voiced line. It has a sweet AlNiCo top-end chime, smooth creamy mids that break up just right, and a substantial low end. With a seamed cone, 1.5" voice coil, and a 40oz. AlNiCo magnet, this speaker can handle whatever you throw at it.
Unit Weight: 7.5 pounds
MOUNTING INFORMATION
- Diameter 10 3/16"”
- Overall depth 5 1/4”
- Cut-out diameter 9”
- Mounting slot dimensions 1/4”
- Number of mounting slots: 8
- Mounting slot PCD 9 3/4”
G10A_clean_Nicky_Moroch.mp3
G10A_drive_Nicky_Moroch.mp3
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs):
82.0 Hz
DC Resistance (Re):
5.2 Ohm
Coil Inductance (Le):
0.32 mH
Mechanical Q (Qms):
5.93
Electromagnetic Q (Qes):
0.76
Total Q (Qts):
0.67
Compliance Equiv. Vol. (Vas):
1.46 cu ft
Mech. Compliance of Susp. (Cms):
0.22 mm/N
BL Product (BL):
7.83 T-M
Diaphragm Mass Inc. Airload (Mms):
17.4 grams
Surface Area of Cone (Sd):
366.0 Surface Area of Cone (Sd):
Sound Pressure Level (spl):
97.0 db
Artists that use this speaker:
